Prime Mill Plates
Certified stock from SAIL, JSPL, and JSW with ultrasonic testing and MTC.
High Impact Toughness
Conforming to IS 2062 Grade E250 / E350 (Fe 410W / Fe 490) with high yield strength.
Anti-Skid Chequered Plates
Teardrop and diamond patterned plates for industrial flooring and walkways.

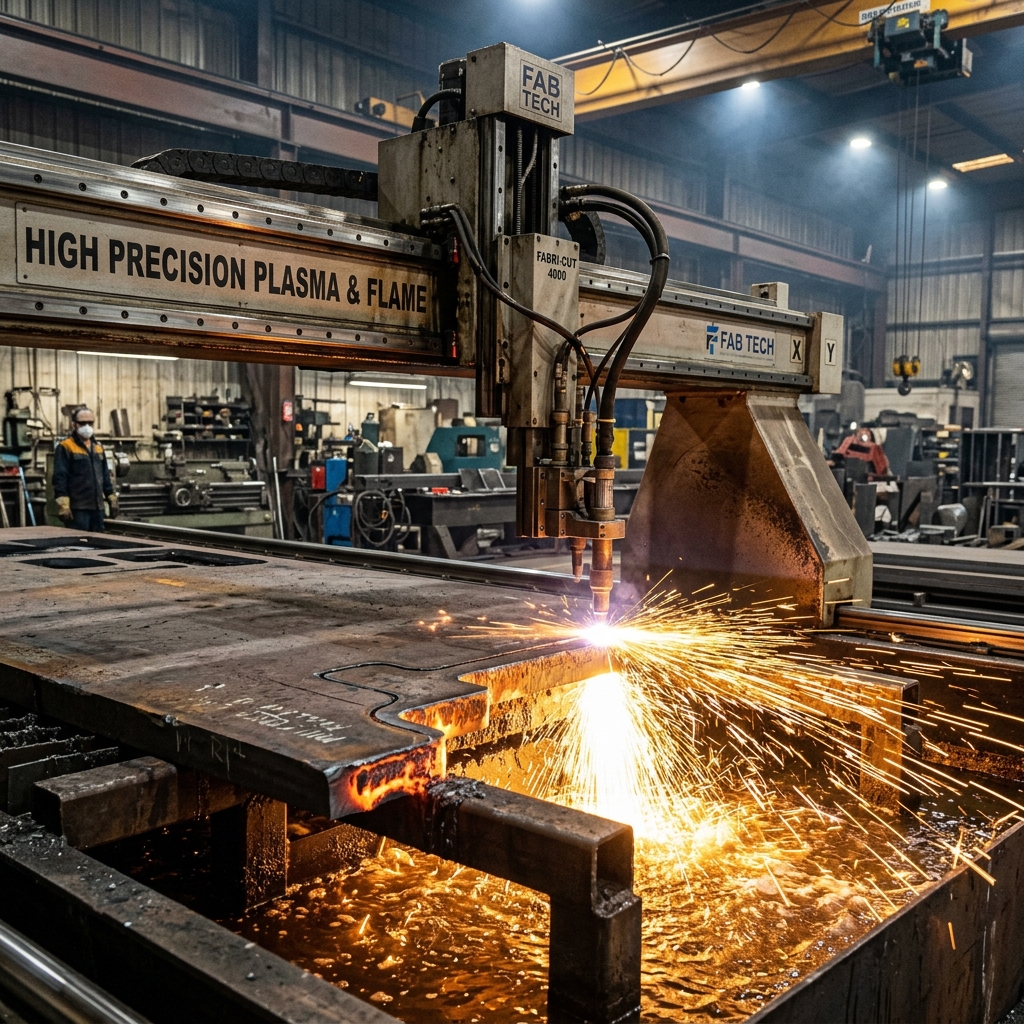

Custom Plasma / Gas Cutting
CNC profile-cut plates and standard plates dispatched promptly across India.
HR Steel Plates & Chequered Plates Dimensions and Weight Chart (IS 2062)
Standard plate thicknesses, plate weights per sq. meter, and standard sheet dimensions.
HR Steel Plates & Chequered Plates Dimensions and Weight Chart (IS 2062)
Ready Stock Inventory| Thickness (mm) | Plate Category | Weight (kg/m²) | Standard Plate Size (Mtr) | Weight per Plate (kg) | Instant Quote |
|---|---|---|---|---|---|
| 3.0 mm | Chequered Plate (Teardrop) | 25.55 kg/m² | 1.25 x 2.50 Mtr | ~80 kg | |
| 4.0 mm | Chequered Plate (Teardrop) | 33.40 kg/m² | 1.25 x 2.50 Mtr | ~104 kg | |
| 5.0 mm | HR Plain Plate | 39.25 kg/m² | 1.50 x 6.00 Mtr | ~353 kg | |
| 6.0 mm | HR Plain Plate | 47.10 kg/m² | 1.50 x 6.00 Mtr | ~424 kg | |
| 8.0 mm | HR Plain Plate | 62.80 kg/m² | 1.50 x 6.00 Mtr | ~565 kg | |
| 10.0 mm | HR Plain Plate | 78.50 kg/m² | 1.50 x 6.00 Mtr | ~707 kg | |
| 12.0 mm | HR Plain Plate | 94.20 kg/m² | 1.50 x 6.00 Mtr | ~848 kg | |
| 16.0 mm | HR Plain Plate | 125.60 kg/m² | 2.00 x 6.00 Mtr | ~1,507 kg | |
| 20.0 mm | HR Plain Plate | 157.00 kg/m² | 2.00 x 6.00 Mtr | ~1,884 kg | |
| 25.0 mm | HR Plain Plate | 196.25 kg/m² | 2.00 x 6.00 Mtr | ~2,355 kg | |
| 32.0 mm | HR Boiler / Heavy Plate | 251.20 kg/m² | 2.00 x 6.00 Mtr | ~3,014 kg | |
| 50.0 mm | HR Heavy Structural Plate | 392.50 kg/m² | 2.00 x 6.00 Mtr | ~4,710 kg |
Hot Rolled Steel Plates & Chequered Plates Engineering Guide
Reliable primary and secondary steel distribution directly from Central India's industrial heartland to project sites across PAN-India.
Hot Rolled (HR) Carbon Steel Plates and Diamond/Teardrop Chequered Plates are heavy structural steel products manufactured as per IS 2062 and IS 3502. They serve as base plates, bridge girders, storage tanks, ship hulls, boiler shells, and earthmoving machinery frames.

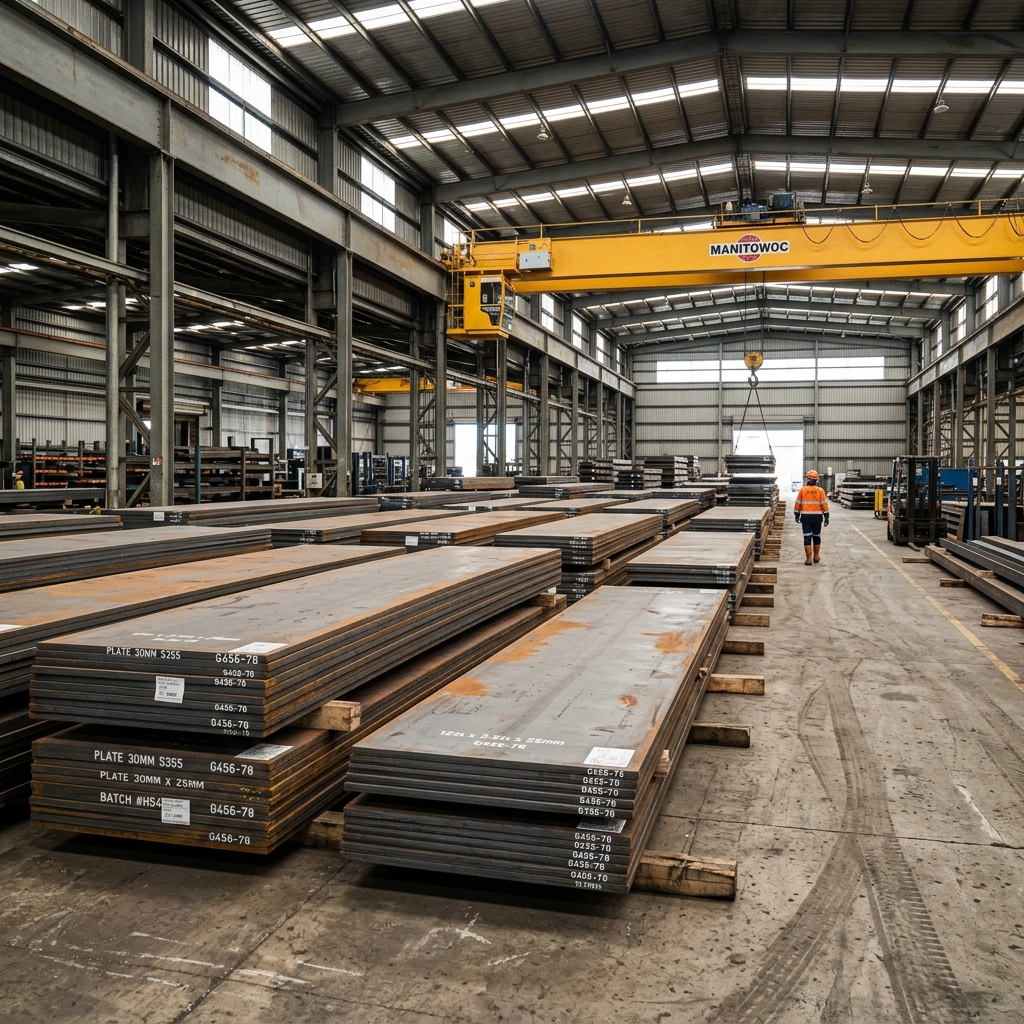

Our Raipur warehouse stocks thicknesses from 3mm to 100mm in standard widths (1250mm, 1500mm, 2000mm, 2500mm) and lengths up to 12.0 meters, with CNC flame and plasma cutting available.
Single-Source Stockyard
Comprehensive ready inventory of structural sections, pipes, rebars & coils under one roof.
100% Certified Metallurgy
Authentic MTC with heat numbers, chemical ladle reports & mechanical strength compliance.
Express Trailer Dispatches
Multi-axle vehicle logistics from Birgaon / Urla industrial yards across Chhattisgarh, MP & India.
Commercial Dispatch & Quality Assurance
Strict quality gates followed for every truckload leaving our yards
BOQ & Mill Grade Verification
Precision size matching against client structural specifications (IS 2062, IS 1239, IS 1786).

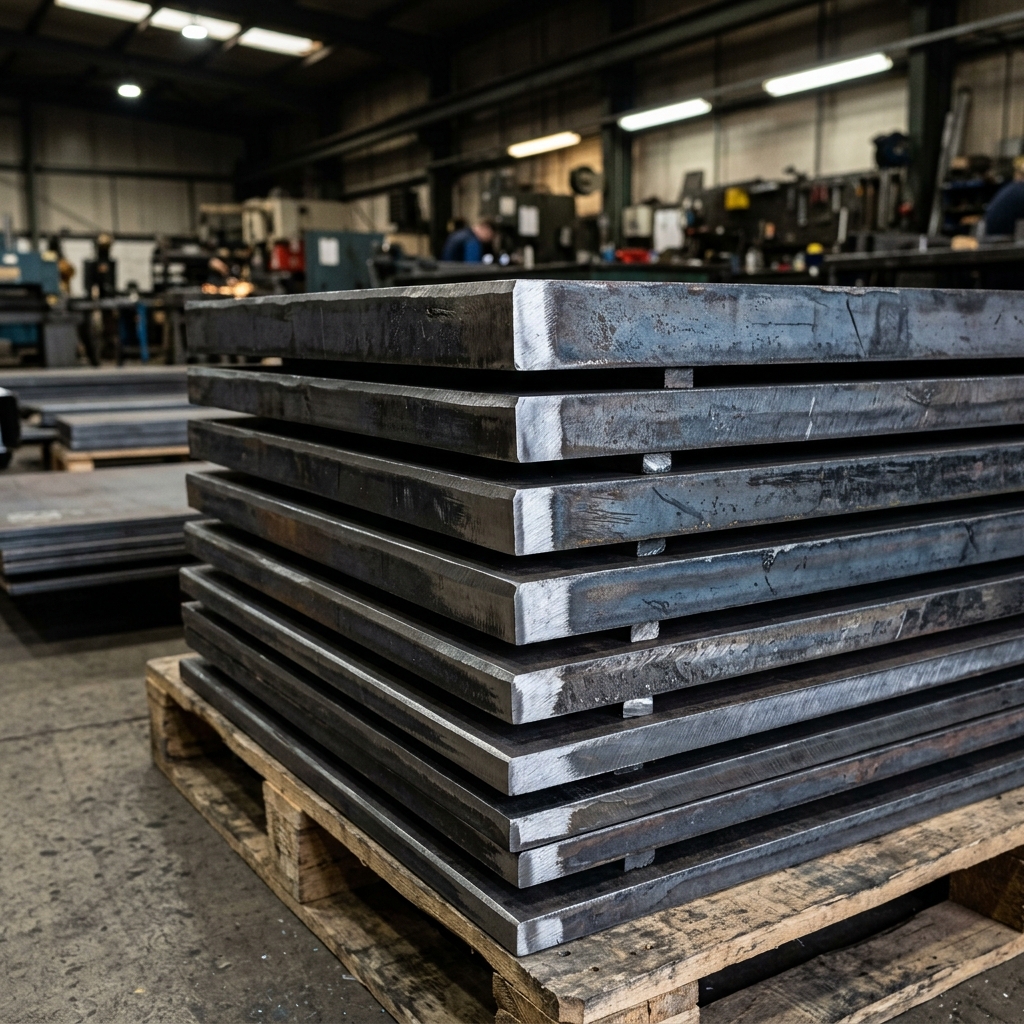

Dimension & Surface Inspection
Dimensional tolerance checking (+/- rolling margin), squareness, and visual defect testing.
100-Ton Tare & Gross Digital Weighing
Calibrated electronic weighbridge slips for 100% accurate billing with zero weight discrepancies.
GST Invoicing, E-Way Bill & MTC Pack
Comprehensive commercial compliance documentation handed to transporter before departure.
Trusted by Leading Contractors & EPC Builders
Real procurement feedback from industrial infrastructure enterprises, fabricators, and project engineers sourcing Hot Rolled (HR) Steel Plates & Chequered Plates from crcsheet.com.
We have been sourcing Hot Rolled (HR) Steel Plates & Chequered Plates from crcsheet.com for our industrial warehouse shed projects. Weighbridge slips match the exact tare & gross with zero weight discrepancy, and Mill Test Certificates (MTC) are handed over promptly before unloading. Exemplary commercial transparency.
Getting authentic mill-certified Hot Rolled (HR) Steel Plates & Chequered Plates with prompt multi-axle trailer dispatches to our Maharashtra infrastructure sites has streamlined our BOQ procurement. Direct mill pricing saved us 4-6% over local retail stockists.
In high-specification infrastructure construction, material compliance is paramount. The team at crcsheet.com consistently provides prime Hot Rolled (HR) Steel Plates & Chequered Plates with ultrasonic test verification and complete chemical ladle analysis reports. Deliveries are always on schedule.
Frequently Asked Questions
Key technical and commercial answers regarding Hot Rolled (HR) Steel Plates & Chequered Plates specifications and supply.
Weight (kg) = Length (m) × Width (m) × Thickness (mm) × 7.85.
IS 2062 Grade E250 A/B/C is standard. High tensile Grade E350 is supplied for dynamic bridge and crane applications.
About JMD Trading Co.
Central India's Leading Industrial Steel Stockyard, Processing & PAN-India Trading Partner
Headquartered in the premier industrial hub of Raipur, Chhattisgarh, JMD Trading Co. is a powerhouse stockist, distributor, and bulk supplier of structural steel, pipes, plates, rebars, and engineering sections. With direct dealership tie-ups and MOU allocations with India's foremost primary mills—including SAIL, Jindal Steel & Power (JSPL), Tata Steel, and AM/NS—we power mega infrastructure, PEB fabrication, EPC projects, and heavy industrial plants nationwide.
